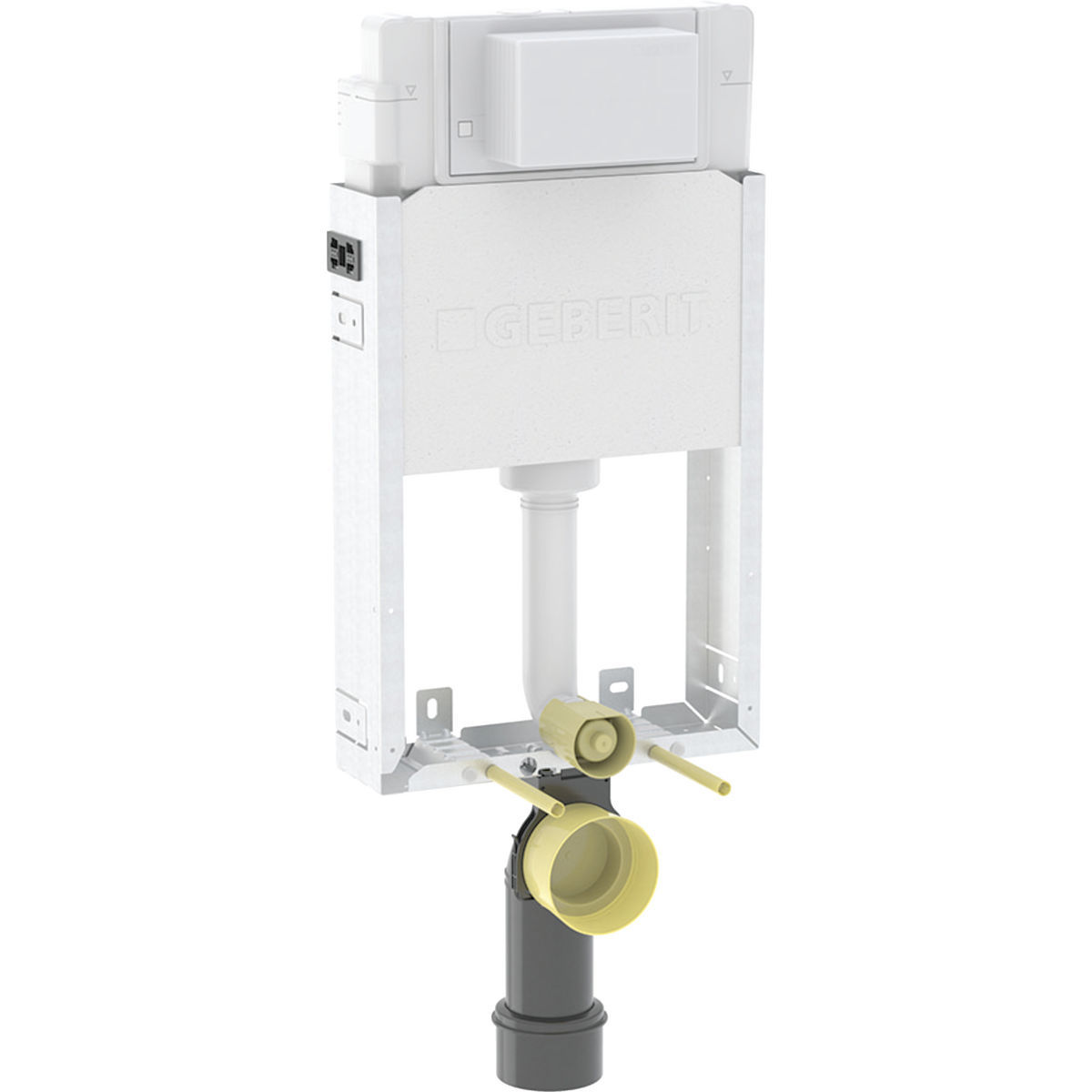

    Geberit Alpha Kombifix Concealed Cistern 106 / 12 cm 110.238.00.2

    Manufacturer: Geberit
    Geberit Alpha Kombifix Concealed Cistern 106 / 12 cm 110.238.00.2
    SKU: 19-GK-11017900
    Manufacturer part number: 110.238.00.2
    Old price: R 2 749.00 incl VAT
    R 2 499.00 incl VAT
    i h

    The Alpha Cistern used to go under the code: 110.179.00.1 which was replaced with 110.238.00.1 and subsequently 110.238.00.2

    This is used for Wall Mounting Applications into a Brick Wall (Wall Hung Pan)

    Technical data

    Flow pressure

    0.1-10 bar

    Flush volume, factory setting

    6 and 3 l

    Flush volume large, adjustment range

    4 / 4.5 / 6 / 7.5 l

    Flush volume small, adjustment range

    2-4 l

    Application purposes

    For masonry walls

    For installation in part or room-height prewall installations

    For wall-hung WCs with connection dimensions in accordance with EN 33:2011

    For dual flush

    Characteristics

    Click on a characteristic to search more products

    Zinc-plated mounting frameMounting frame with four fastening brackets
    Connection bend can be mounted without tools
    Fastening for connection bend can be mounted without tools from front
    Concealed cistern with front actuation
    Concealed cistern, fully insulated against condensation
    Immediate post flush possible with factory setting
    Water supply connection on the rear or top centre
    Water supply connection, dezincification-resistant
    Protection cover box for service opening protects against moisture and dirt
    Protection box for service opening can be cut to length

    Scope of delivery

    • Angle stop valve R 1/2", compatible with MF, with adapter ring

    • Protection box for service opening

    • Connection set for WC, ø 90 mm

    • Connection bend made of PE-HD, ø 90 mm

    • Adapter socket made of PE-HD, ø 90 / 110 mm

    • 2 protection plugs

    • 2 threaded rods M12

    • Fastening material
